Querying DynamoDB data in Athena without losing your mind

The Why 🤔

#

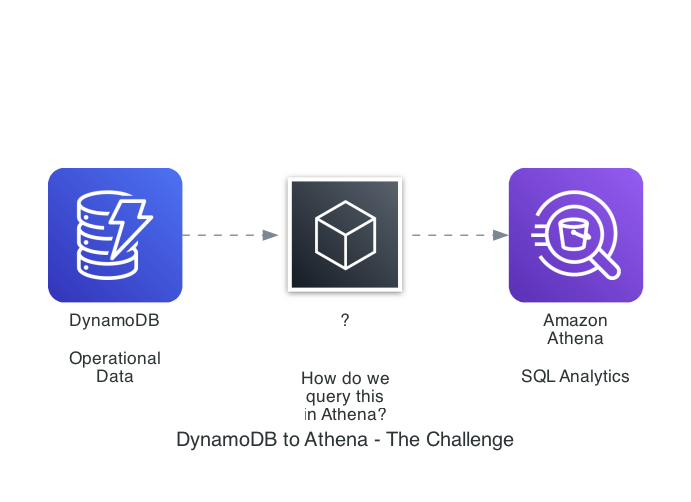

I was helping out someone this week to get snapshot visibility into a DynamoDB table via Athena. The plan was: “catalog the table, run a query, call it a day.” Instead I bounced between four approaches, each failing in slightly different (and educational) ways before landing on a Glue ETL job that emits Parquet. If you’re trying to follow a similar breadcrumb trail, here’s the full map — dead ends included.

Architecture at a glance

#

• DataStack is the shared foundation: DynamoDB table (PITR on), S3 bucket with lifecycle rules, Glue database, Athena workgroup (recursiveDeleteOption: true so teardown doesn’t get stuck), and a Python data seeder Lambda for mock data.
• Each failure path is isolated in its own CDK stack so I can cdk deploy ExportJsonStack, or tear it down without touching the others.
• Source is under bin/ + lib/stacks/, with helper code in resources/ for the seeder and Glue ETL script.

The code is available in my example repository - weirdion/dynamodb-glueetl-athena-cdk-example

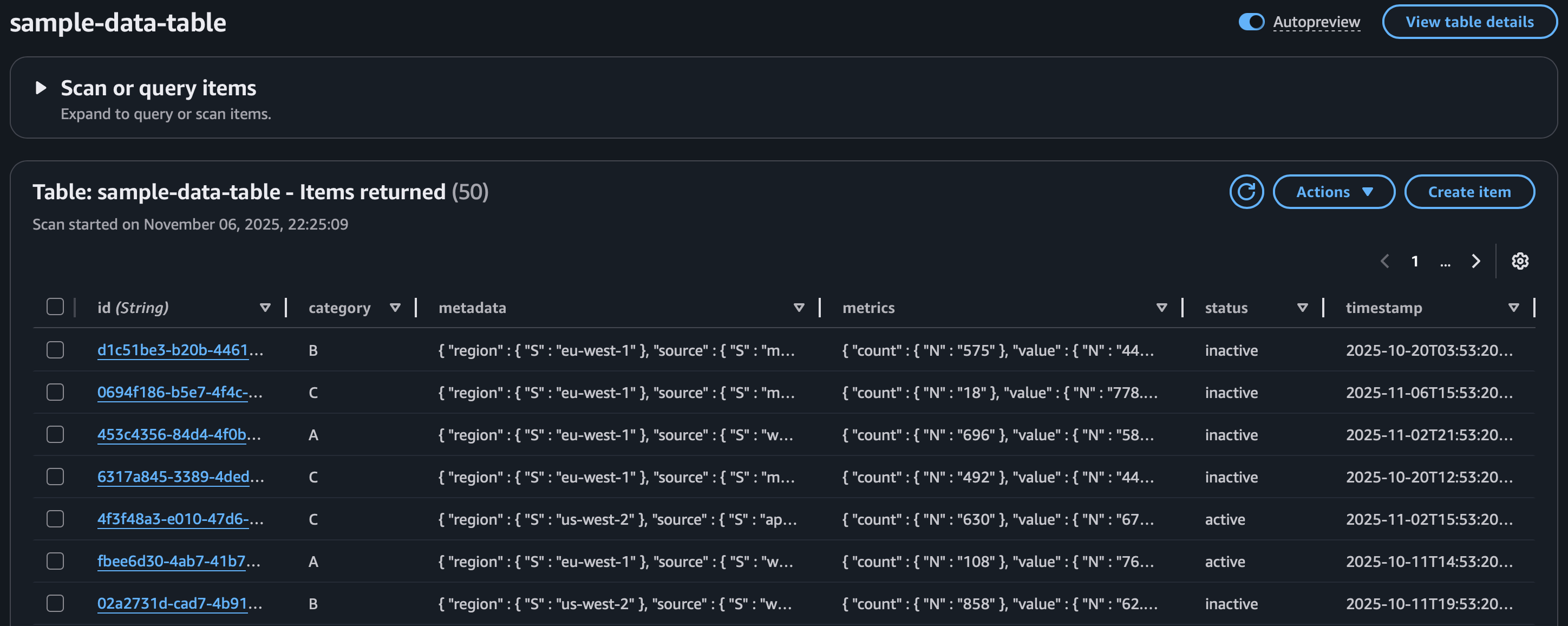

Dyanmo DB sample data, to mock real life entries, not just simple strings and numbers.

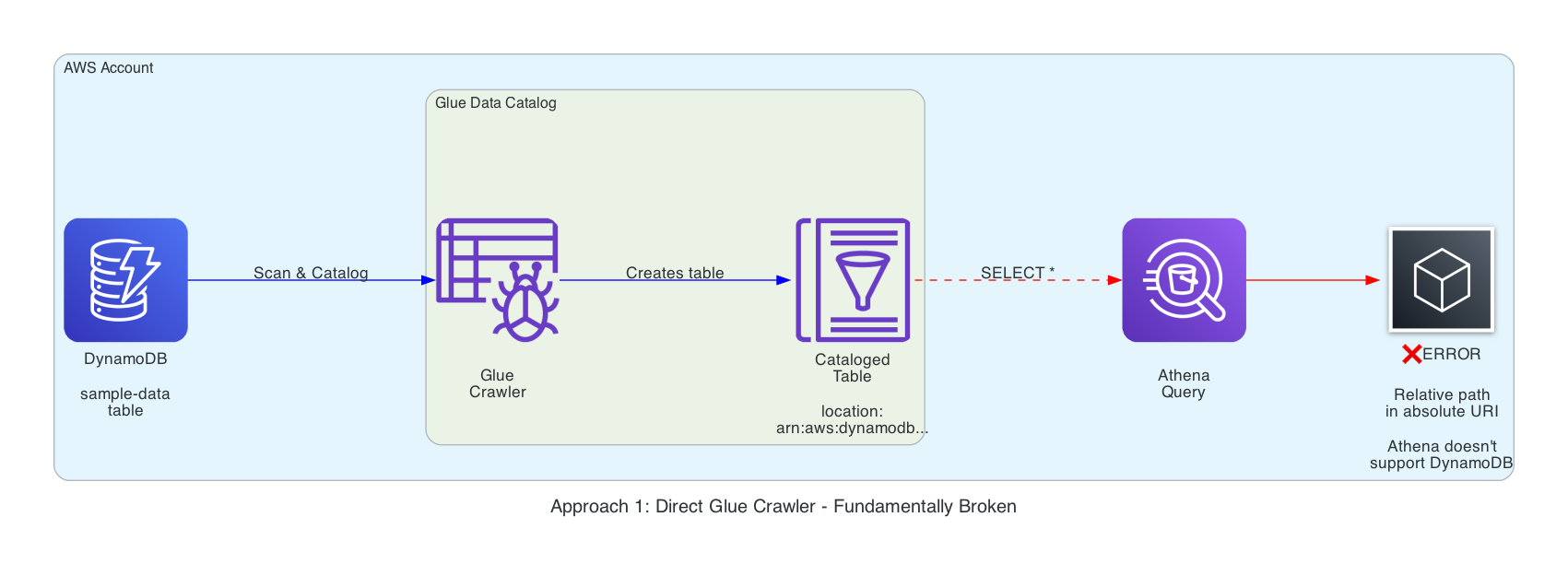

Approach 1 — Glue crawler pointed directly at DynamoDB (fails fast)

#

// lib/stacks/crawler-dynamodb-stack.ts (excerpt)
this.crawler = new CfnCrawler(this, 'DynamoDbDirectCrawler', {
  name: 'dynamodb-direct-crawler',
  targets: { dynamoDbTargets: [{ path: props.tableName }] },
  databaseName: props.databaseName,
  tablePrefix: 'dynamodb_direct_',
});

• Glue happily catalogs the table and publishes a schema, so it looks like success.

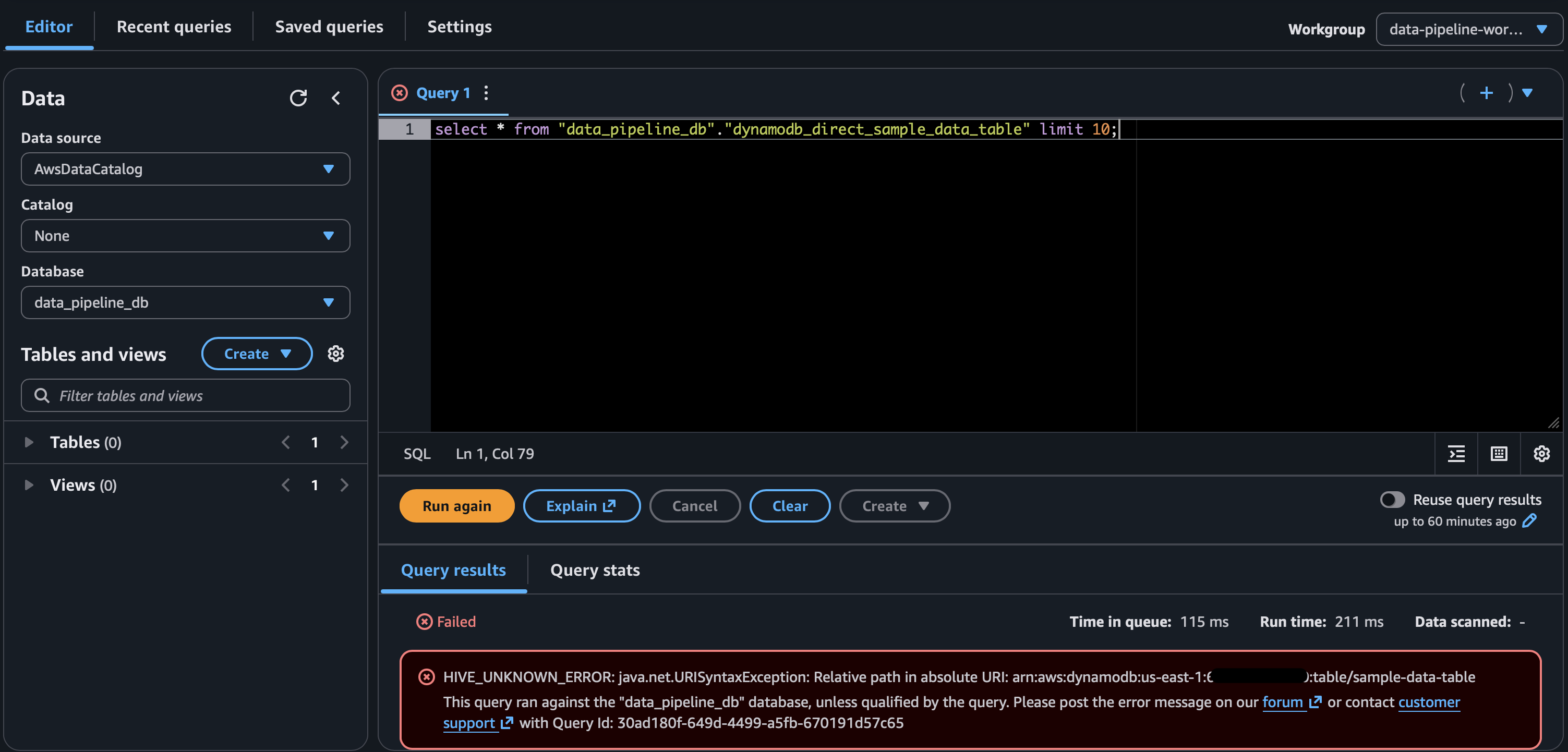

• Athena immediately errors because only DynamoDB tables are not supported.
• Lesson: a Glue Catalog entry doesn’t guarantee Athena compatibility. Catalog ≠ queryable.

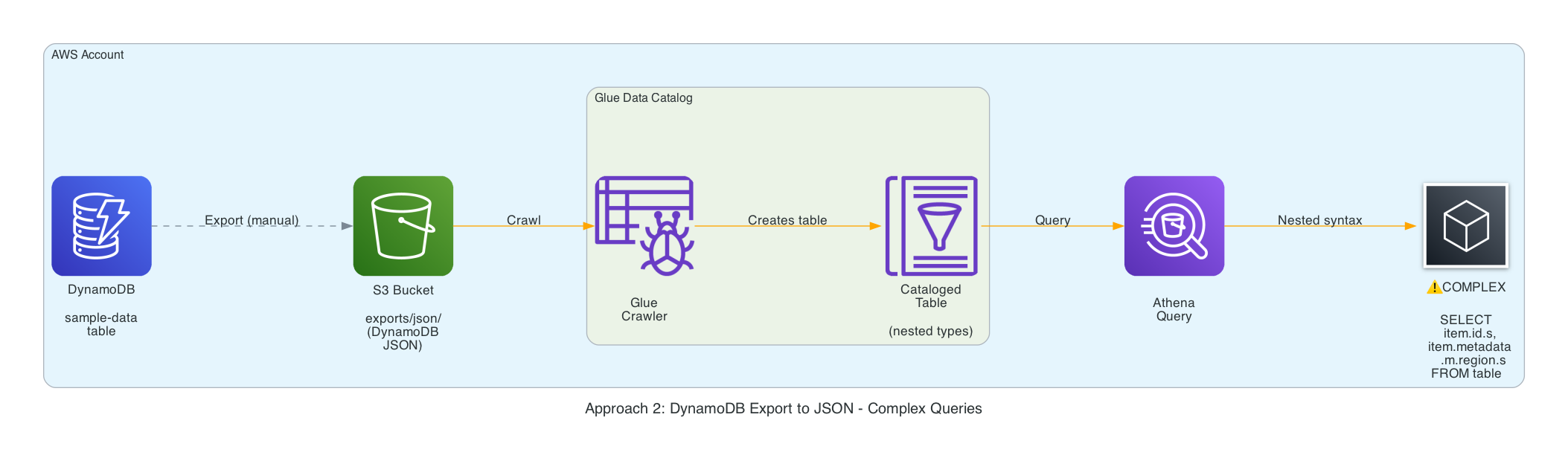

Approach 2 — DynamoDB export → JSON → Glue crawler (technically works, practically awful)

#

aws dynamodb export-table-to-point-in-time \
  --table-arn $TABLE_ARN \
  --s3-bucket $BUCKET \
  --s3-prefix exports/json/ \
  --export-format DYNAMODB_JSON

• Exports DO NOT land quickly, even for a small mock data set, had wait several minutes.
• The crawler builds a table from S3 export, there’s a lot of metadata file tables and every attribute carries type descriptors (S, N, M, etc.).
• Filtering by category becomes SELECT * FROM json_export_sample_data_table WHERE category.s = 'B';. Joining on nested structs is even worse (metadata.m.region.s).

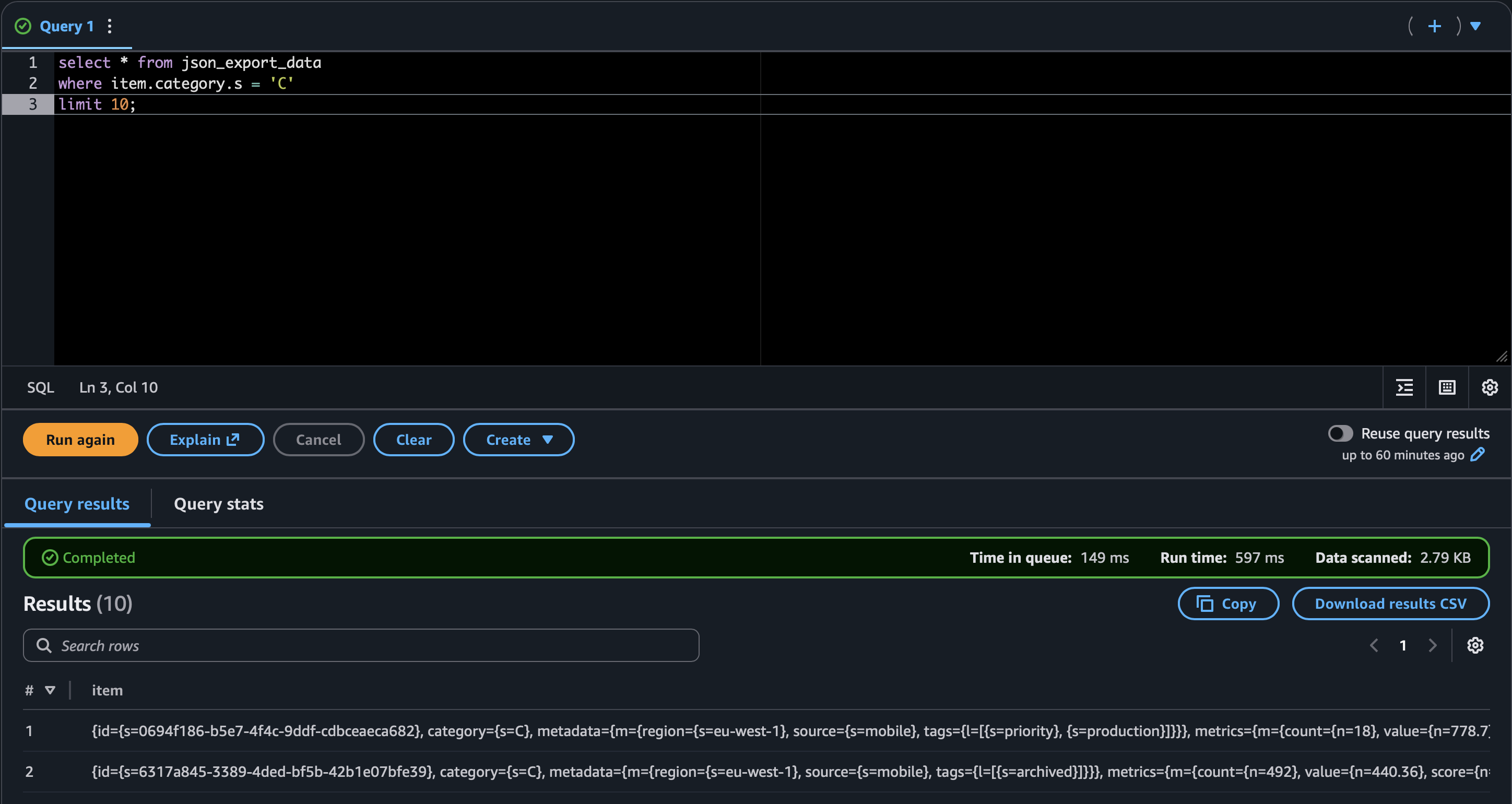

• You can wrangle it (see screenshot), but asking teammates to read that kind of JSON is a non-starter.

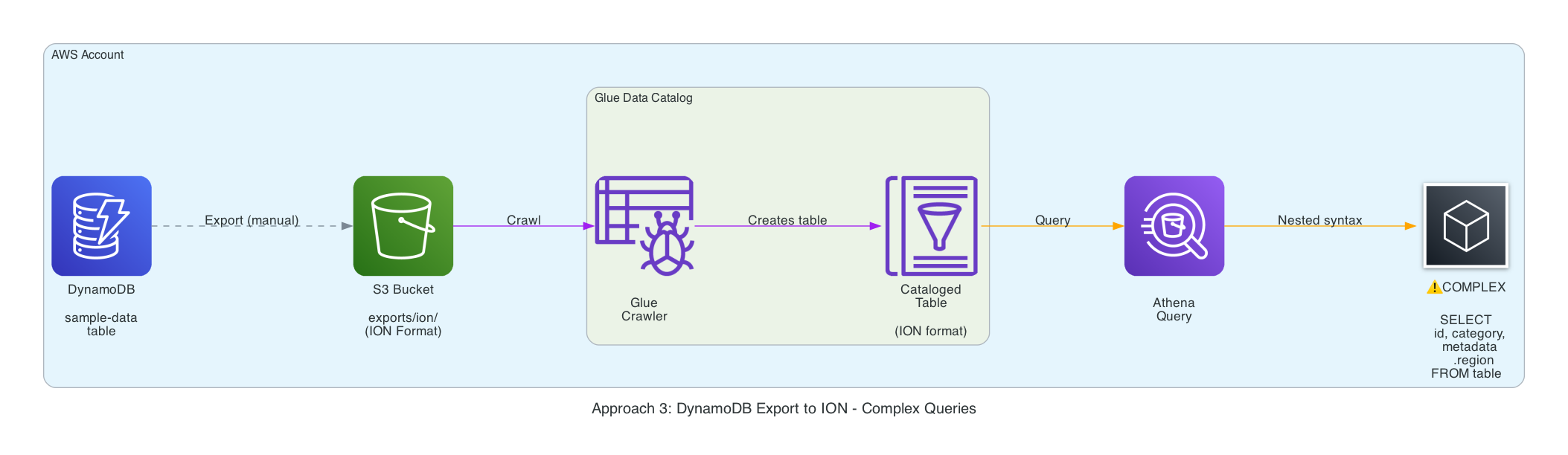

Approach 3 — DynamoDB export → ION (slightly nicer, still clunky)

#

aws dynamodb export-table-to-point-in-time \
  --table-arn $TABLE_ARN \
  --s3-bucket $BUCKET$ \
  --s3-prefix exports/ion/ \
  --export-format ION

• Again, exports DO NOT land quickly, even for a small mock data set, had wait several minutes.
• ION gave me hope because it preserves numeric fidelity and drops most of the S/N/M wrappers. Glue crawled the export and Athena could query it.

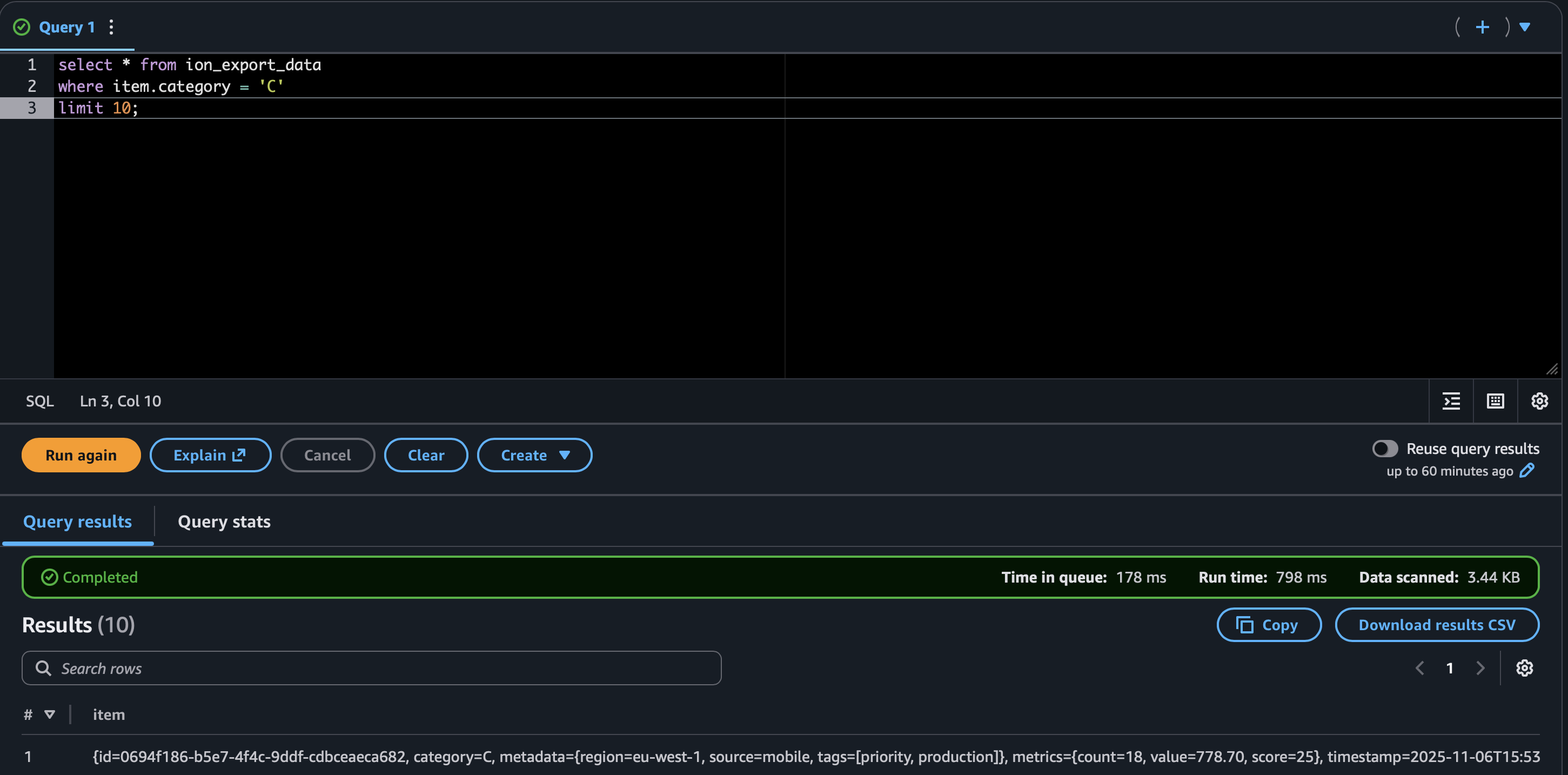

• Unfortunately the rows still arrive as a single item struct (item.metadata.region, item.metrics.count, etc.). You can filter with WHERE item.category = 'C', but joins still require nested selectors and manual casting.
• Compared to JSON it’s marginally more readable, yet I’d still have to maintain a view that flattens everything before handing it to analysts. At that point, I might as well run a proper transform.

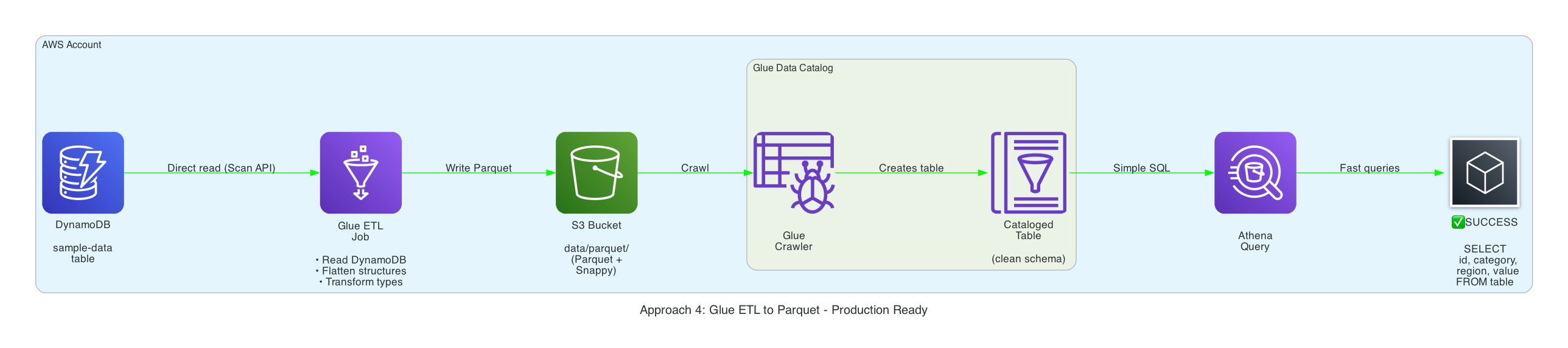

Approach 4 — Glue ETL → Parquet (finally usable)

#

// lib/stacks/etl-parquet-stack.ts (job excerpt)
this.etlJob = new CfnJob(this, 'DynamoDbToParquetJob', {
  name: 'dynamodb-to-parquet-etl',
  command: { name: 'glueetl', scriptLocation: scriptAsset.s3ObjectUrl },
  defaultArguments: {
    '--TABLE_NAME': props.tableName,
    '--OUTPUT_PATH': `s3://${props.bucketName}/data/parquet/`,
    '--DATABASE_NAME': props.databaseName,
  },
  workerType: 'G.1X',
  numberOfWorkers: 2,
});

dynamodb_dyf = glueContext.create_dynamic_frame.from_options(
    connection_type="dynamodb",
    connection_options={
        "dynamodb.input.tableName": args['TABLE_NAME'],
        "dynamodb.throughput.read.percent": "0.5",  # Use 50% of table's read capacity
    }
)

# resources/glue/dynamodb-to-parquet-etl/job.py (flattening snippet)
flattened_df = df.select(
    col("id").cast(StringType()).alias("id"),
    col("category").cast(StringType()).alias("category"),
    col("metadata.region").cast(StringType()).alias("region"),
    col("metadata.source").cast(StringType()).alias("source"),
    col("metrics.value").cast(DoubleType()).alias("value"),
    col("metadata.tags").alias("tags"),
)

• Glue reads directly from DynamoDB (I cap dynamodb.throughput.read.percent at 0.5 so I don’t trash prod capacity), flattens the nested structs, and writes Snappy Parquet.

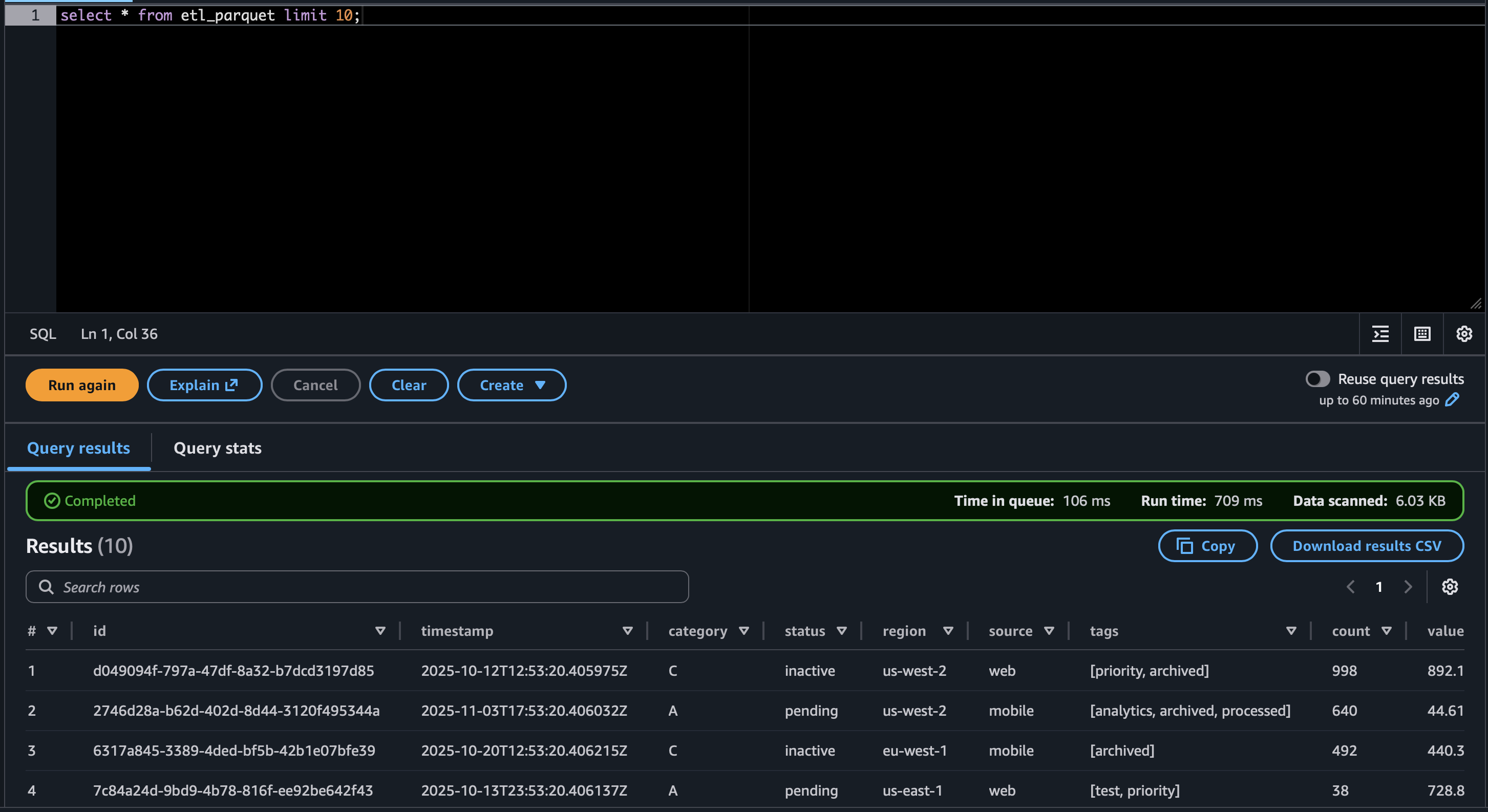

• A follow-up crawler over s3://…/data/parquet/ produces a clean table (etl_sample_data_table) that behaves just like any other Athena dataset.
• Scan costs nosedive because Parquet is columnar, and everyone can finally write SELECT region, COUNT(*) FROM parquet_sample_data_table GROUP BY 1;.

The code is available in my example repository - weirdion/dynamodb-glueetl-athena-cdk-example

Cost + operational notes

#

• DynamoDB export: free, PITR required, outputs only JSON/ION.
• Glue crawler: pennies, but it can’t make unsupported formats magically queryable.
• Glue ETL: 2 × G.1X workers (~$0.44/DPU-hour). Disable bookmarks for one-off demos; enable them for incremental loads.
• Athena: charged per TB scanned. Parquet brings the dataset small enough that test queries stay in the pennies.

Don’t forget to cleanup 🧹

#

cdk destroy --all

• The demo stacks use RemovalPolicy.DESTROY and autoDeleteObjects for convenience. Flip those to RETAIN + blockPublicAccess if you adapt this for anything long-lived.
